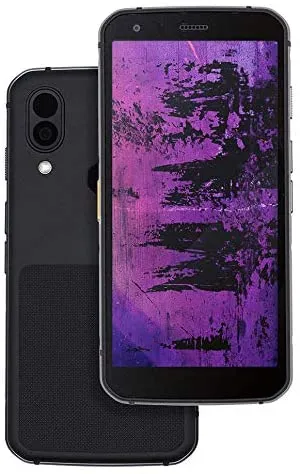

CAT S62 Pro Rugged Smartphone with Thermal Imaging
The Cat S62 Pro is an advanced tool, providing instant access to professional-grade thermal imaging in a rugged smartphone - always on, always ready. Our third generation of the Cat 60 series has the best integrated thermal camera available in a smartphone.
Main features:- Professional-grade thermal imaging powered by the FLIR Lepton 3.5 sensor
- 4x increase in the number of thermal pixels
- 128GB ROM, Expandable via microSD™ card up to 256GB (1x SIM 1x microSD / 2x SIM)
- Beyond Rugged: IP68 & IP69 and Mil-Spec 810H: Dustproof and drop proof to 1.8m, vibration, sand, salt mist and pressure resistant
- 5.7” FHD 18:9 display protected by Gorilla Glass 6
- Extended battery life – up to two days general use (4000mAh)
Thermal features
The Cat S62 Pro features several exclusive enhancements providing even more thermal detail to help locate and diagnose the damp, the draught, the leak, the hotspot, the electrical short, the blockage or the elevated temperature.
It’s powered by the highest resolution FLIR lepton available today, the FLIR Lepton 3.5 professional-grade sensor, which brings a huge 4x increase in the number of thermal pixels. Combined with FLIR’s VividIR technology, the Cat S62 Pro delivers enhanced image quality, sharper image and higher thermal resolution.
Thermal imagery can be blended with the visual image from the S62 Pro’s 12MP dual pixel Sony camera, or used with FLIR’s variable intensity MSX (Multi-Spectral Dynamic Imaging) technology that overlays linear detail from the scene onto the thermal image, providing greater context to help understand thermal images.
These new features all create a more immersive and intuitive experience and ensure the Cat S62 Pro produces thermal pictures of stunning clarity.
- The Cat S62 Pro is fully Enterprise ready, and features in Google’s Android Enterprise Recommended listing. The device supports Android Enterprise features, including Zero-touch enrolment, and has undergone a series of enrolment and policy provisioning tests with leading EMM solutions.
- For peace of mind, the Cat S62 Pro will receive security updates for three years* from launch, and is guaranteed to receive at least one Android version upgrade (from Android 10 to Android 11) in its lifetime.
- *2 years of security maintenance releases every 90 days, plus one year of emergency security maintenance releases
-
- 1 x CAT S62 Pro Rugged Smartphone with Thermal Imaging
- 1 x Charger
- 1 x User Manual
-
Network:
4G LTE CAT 13, VoLTE, VoWiFi, ViLTE4G LTE Bands: 1/2/3/4/5/7/8/20/28/38/403G Bands: 1, 2, 4, 5, 82G Bands: 2, 3, 5, 8
Processor:
Qualcomm Snapdragon 660, 2.0GHz octa-core processor
Size:
Dimensions: 158.5 x 76.7 x 11.9mmWeight: 248g
Platform:
OS: Google Android™ 10 (with upgrade to 11)
Display:
Type: Super Bright 5.7” Display – FHD (1080 x 2160) 18:9. TFT LCD, wet finger/glove-on working technologyCover: Corning® Gorilla® Glass 6
Thermal Imaging:
Intergrated FLIR thermal camera:– Lepton 3.5 professional grade camera
– 1440 x 1080 HD output with VividIR
– MSX linear overlay from visual camera
– Measurable range: -20℃ to 400℃
Hygiene:
Repeated bleach wipe test with 3000cyclesPressurised alcohol abrasion tests at 500gF/cm2 over hundreds of cycles Prolonged real world chemical mix exposure and susceptibility testing
Beyond Rugged:
- Ingress Protection: IP68 & IP69: sand, dust and dirt resistant- Waterproof: Up to 1.5m for 35 minutes- Drop Tested: From 1.8m (6ft) onto steel- MIL SPEC 810G: Thermal shock: handles low to high temperature differences between -25°C (-13°F) to 55°C (131°F) for up to 24hrs*- Resistant to vibration: Category 4. Resistant to humidity and salt mist
Multimedia:
Audio: Music PlayerVideo Encoding: 4K (3840 × 2160 at 30 fps)Video Decoding: 4K (3840 × 2160 at 30 fps)
Camera:
Rear-facing: 12MP Sony dual pixel sensor, f/1.8 aperture, large 1.4µm pixel sizeFront-facing: 8MP sensor
Connectivity:
Bluetooth®: 5NFC: Yes (Android Pay™)Wi-Fi®: 802.11 a/b/g/n/ac (2.4 & 5GHz)USB: USB: USB 2.0 / Type C USB (waterproof), quick charge 4, USB-OTGSim Type: Nano SIM, dual and single SIM variantsGPS: GPS, AGPS, Glonass, BeiDou (variant dependant), Galileo
Memory:
ROM: 128GBRAM: 6GBExpandable via microSD™ card up to 256GB (separate microSD ™ and SIM slots)
Sensor:
FLIR Thermal Lepton 3.5FingerprintNFCProximityGPSAmbient LightCompassGyro acceletometer
Design Features:
Programmable Key with PTT modePhysical power and volume (up/down) keysHard-wearing, non-slip rubberized TPU backLED notification (3 colours)
Battery:
Capacity: 4000mAh (supports fast charging)Type: Non removable Lithium Ion
Apps:
Office SuiteToolboxOnGuard (selected markets)
Enterprise:
Android Enterprise support (AE test suite passed)Zero-touch support90-day security patches for 2yrs 1yr ESMR coverEMM enrolment/basic policy provisioning tested with:
VMware Workspace ONE, IBM MaaS 360, SOTI, Mobile Iron
UPC:
810296025140
SKU:
CS62PDBBRONUN
